Solar Disconnect Switch 4-Pole DC 1500V 32A Isolator Solar Switch with Enclosure for Rooftop Solar Systems, RVs Waterproof IP66 Red Bottom Wiring
Product details
| Management number | 229641055 | Release Date | 2026/05/31 | List Price | US$16.00 | Model Number | 229641055 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The DC isolator solar switch is designed to quickly and safely disconnect DC power up to 32A 1500V when installing or maintaining PV systems. Compliant with IEC60947-1&3 standards, it is the first choice for repair, maintenance, inspection and installation. (rated working voltage 1200V, rated insulation voltage 1500V)

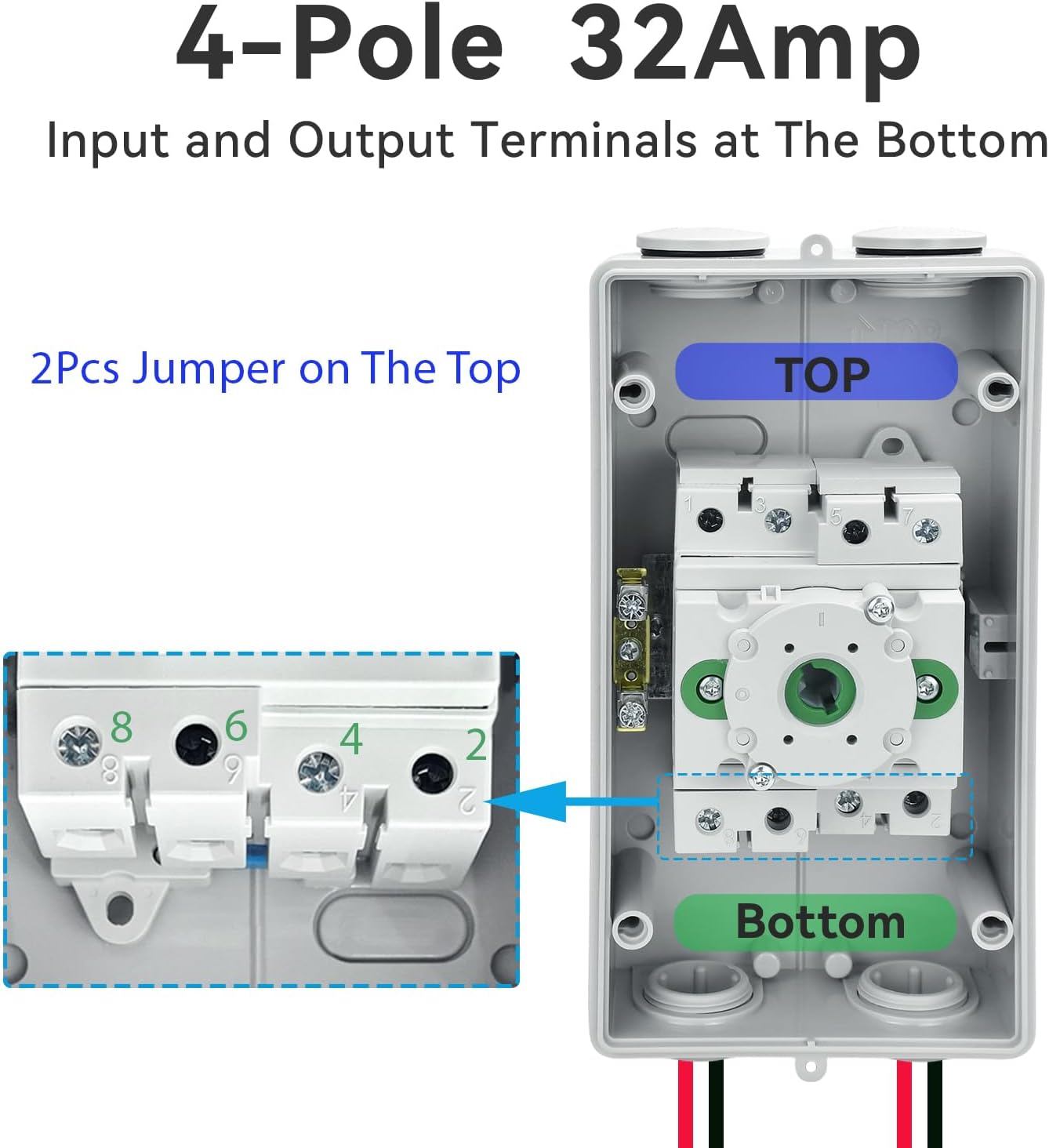

- [ 32A, DC1500V, Input and Output at The Bottom ] Ui: 1500V DC; Ith: 32 Amp; Uimp: 8000V; Icw: 1KA, 1S. 32A DC isolator solar switch is designed to quickly and safely disconnect DC power up.
- [ HIGH SECURITY ] Red handle, 4-Pole. The PV switch disconnector has 4 separate circuits of 32 amps each, 64A max. for 2 circuits for high work safety. And the solar disconnect switch has a padlocked handle that locks in the closed position and is tamper-resistant.
- [1-in 1-out ] 4-Pole; 1-String,1 in 1 out. Ease to work seamlessly with the MC4 connector with a stable, robust self-locking system. Installation is as simple as plugging in the cable, saving time and effort.

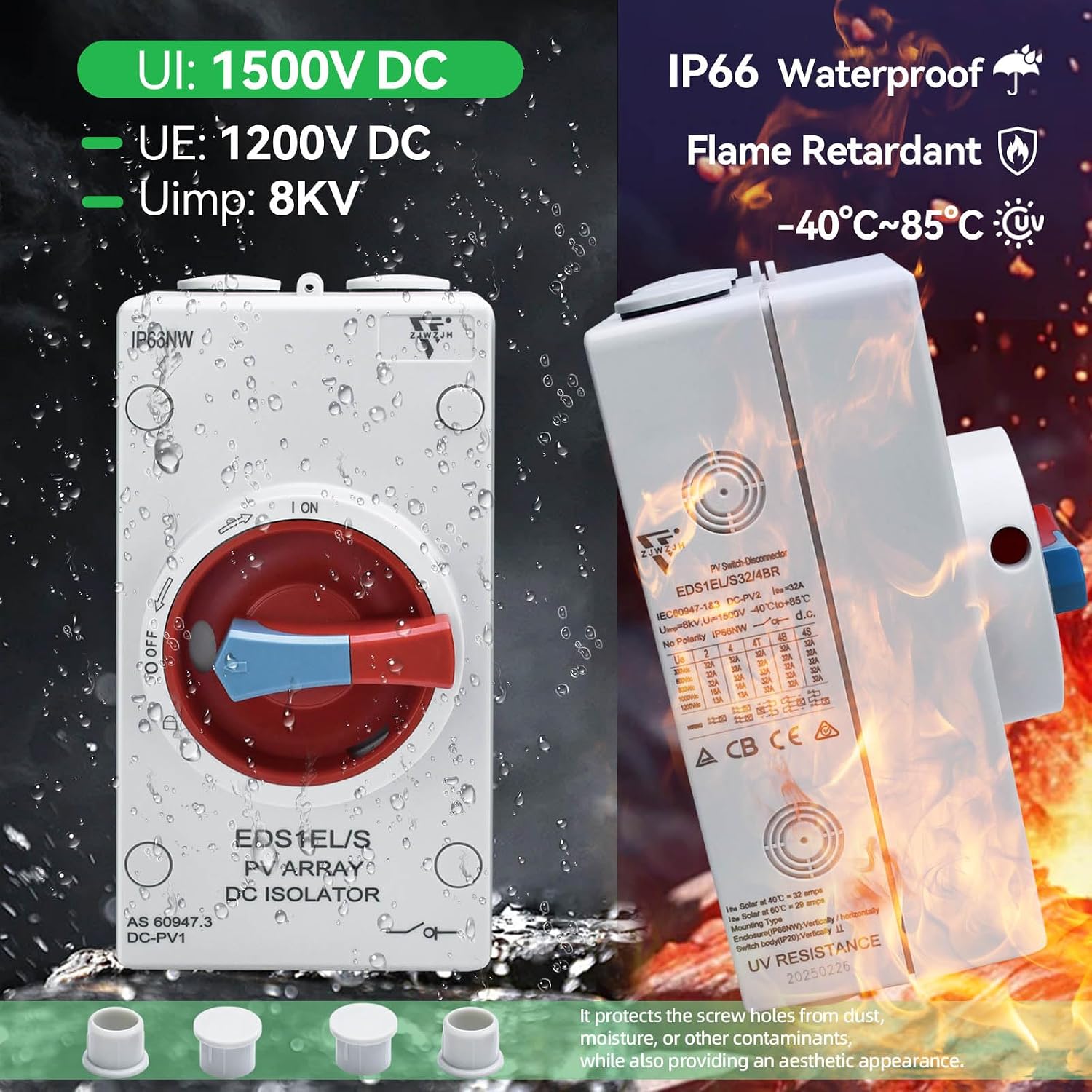

- [RELIABLE & DURABLE] ZJWZJH's solar pv isolator switches are made of high quality PC material, It has the advantages of UV-proof, flame retardant, water and dust prevention (IP66), Cold and heat protection (-40℉~+185℉), environmental aging and corrosion resistance, and long service life, perfect for outdoor and indoor installation.
- [APPLICATION] Whether it's solar panels, solar charge controllers, solar inverters or solar modules, you can integrate our DC disconnect switches to connect and control them all. It is ideal for private and commercial PV networks and perfect for your caravan or boat solar system.
- [ Package ] 1 X Disconnector Switch; 4 X Screw; 2 Mounting Kit; 5 connection terminals; 4 Cable Connectors.
| ASIN | B0G7ZPWJKK |
|---|---|
| Color | Red 4 Pole Botton |
| Model | EDS1-4BR-R |
| Terminal | Quick-connect |
| Brand Name | ZJWZJH |
| Unit Count | 1.0 Count |
| Item Weight | 1.6 Pounds |
| Part Number | EDS1-4BR-R |
| Switch Type | Disconnect Switch |
| Circuit Type | 4-way |
| Contact Type | 4 Pole |
| Control Type | On/Off |
| Manufacturer | ZJWZJH |
| Actuator Type | Rotary |
| Material Type | Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Control Method | Push Button |
| Current Rating | 32 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Disconnect Switch |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 1500 Volts (DC) |
| Specification Met | CB, CE, RCM, TUV |
| Compatible Devices | Solar Panels, Solar Charge Controllers, Solar Inverters, Solar Modules, Private PV Networks, Commercial PV Networks, Caravan Solar Systems, Boat Solar Systems |
| Included Components | 1 X Disconnector Switch; 4 X Screw; 5 connection terminals; 4 Cable Connectors. |
| Number of Positions | 4 |
| Warranty Description | If you have any questions, please contact us. |
| Smart Home Compatibility | Not Smart Home Compatible |
| Upper Temperature Rating | 85 Degrees Celsius |
| Compatible with Vehicle Type | Caravan, Boat |
| International Protection Rating | IP66 |
